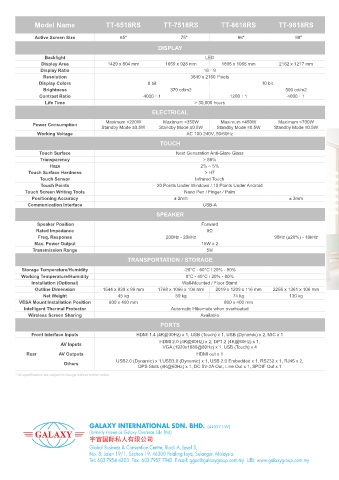

Page 45 - Galaxy International

Model Name TT-6518RS TT-7518RS TT-8618RS TT-9818RS

Active Screen Size 65" 75" 86" 98"

DISPLAY

Backlight LED
Display Area 1429 x 804 mm 1650 x 928 mm 1895 x 1066 mm 2162 x 1217 mm
Display Ratio 16j9
Resolution 3840 x 2160 Pixels
Display Colors 8 bit 10 bit
Brightness 370 cd/m2 500 cd/m2
Contrast Ratio 4000j1 1200j1 4000j1
Life Time > 30,000 hours

ELECTRICAL

Maximum <220W Maximum <350W Maximum <450W Maximum <700W
Power Consumption
Standby Mode ≤0.5W Standby Mode ≤0.5W Standby Mode ≤0.5W Standby Mode ≤0.5W
Working Voltage AC 100-240V, 50/60Hz

TOUCH

Touch Surface Next Generation Anti-Glare Glass
Transparency > 88%
Haze 2% ~ 5%
Touch Surface Hardness > H7
Touch Sensor Infrared Touch
Touch Points 20 Points Under Windows / 10 Points Under Android
Touch Screen Writing Tools Nano Pen / Finger / Palm
Positioning Accuracy ± 2mm ± 3mm

Communication Interface USB-A
SPEAKER

Speaker Position Forward
Rated Impedance 8Ω
Freq. Response 200Hz - 20kHz 90Hz (±20%) - 18kHz
Max. Power Output 15W x 2
Transmission Range 5M
TRANSPORTATION / STORAGE

Storage Temperature/Humidity -20°C - 60°C / 20% - 90%
Working Temperature/Humidity 0°C - 40°C / 20% - 80%
Installation (Optional) Wall-Mounted / Floor Stand
Outline Dimension 1544 x 939 x 99 mm 1768 x 1066 x 104 mm 2019 x 1209 x 116 mm 2256 x 1361 x 106 mm
Net Weight 45 kg 59 kg 74 kg 130 kg
VESA Mount Installation Position 600 x 400 mm 800 x 400 mm
Intelligent Thermal Protector Automatic Hibernate when overheated
Wireless Screen Sharing Available

PORTS

Front Interface Inputs HDMI 1.4 (4K@30Hz) x 1, USB (Touch) x 1, USB (Dynamic) x 2 MIC x 1
HDMI 2.0 (4K@60Hz) x 2, DP1.2 (4K@60Hz) x 1,
AV Inputs
VGA (1920x1080@60Hz) x 1 USB (Touch) x 4
Rear AV Outputs HDMI out x 1
USB2.0 (Dynamic) x 1,USB3.0 (Dynamic) x 1, USB 2.0 Embedded x 1, RS232 x 1, RJ45 x 2,
Others
OPS Slots (4K@60Hz) x 1, DC 5V-2A Out, Line Out x 1, SPDIF Out x 1
